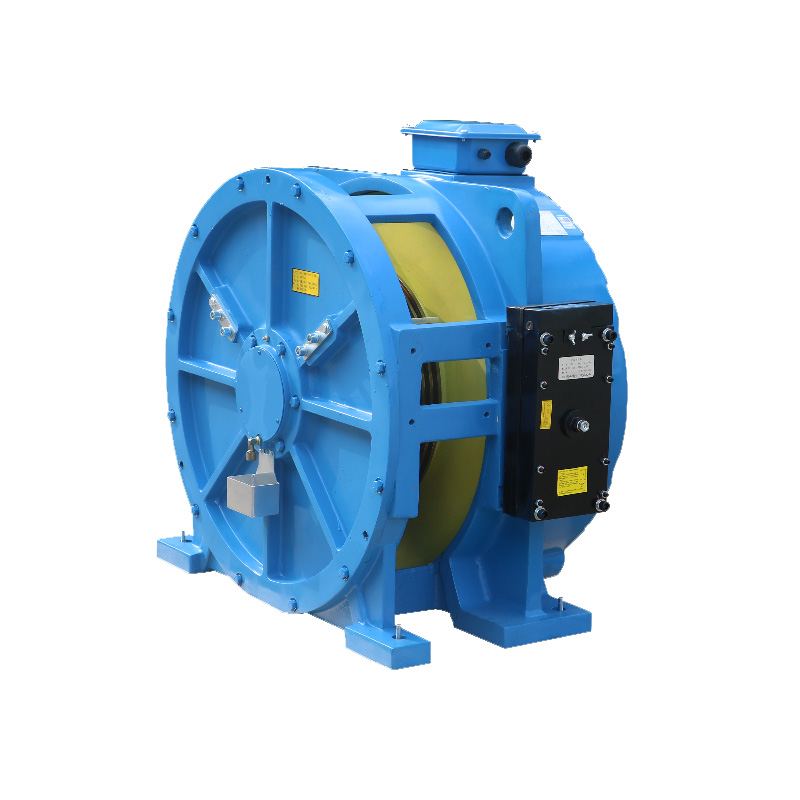

WJC-2500/3000 MR passasjerheis

Modell	Kapasitet kg	Heishastighet m/s	Nominell utgang kW	Merkestrøm A	Nominell hastighet rpm	Hyppighet Hz	Skivediameter mm	Dreiemoment Nm	Tau	Groove Dist mm	Kutt Vinkel	Rillevinkel	Roping	Akselbelastning kg	Håndtakshjul	Fjernutløser	Treghet kg m^2	Vekt kg
WJC-2500-100	2500	1.0	16.6	40.0	80	26.5	480	1995	8xΦ12	18	β=95°	γ=30°	2:1	7000	Y	N	22	1035
WJC-2500-150		1.5	24.9	63.0	119	39.8
WJC-2500-160		1.6	26.6		127	42.4
WJC-2500-175		1.75	29.1		139	46.4
WJC-2500-200		2.0	32.5	72.5	159	53.1		1950
WJC-2500-250		2.5	38.1	80.0	199	66.3		1829
★WJC-3000-100-H	3000	1.0	18.3	44.0	80	26.5	480	2195	8xΦ12	18	β=95°	γ=30°	2:1	7000	Y	N	22	1035
★WJC-3000-150-H		1.5	27.4	76.5	119	39.8
★WJC-3000-160-H		1.6	29.3		127	42.4
★WJC-3000-175-H		1.75	32.0		139	46.4
★WJC-3000-200-H		2.0	36.6	82.0	159	53.1
WJC-1000-300	1000	3.0	20.0	44.5	220	73.5	520	865	7xΦ12	18	β=95°	γ=30°	2:1	7000	Y	N	22	1035
WJC-1150-300	1150		23.0	51.0				994
WJC-1250-300	1250		25.0	56.0				1081
WJC-1350-300	1350		27.0	60.0				1167
WJC-1600-300	1600		31.9	68.0				1384
WJC-2000-300	2000		39.9	89.0				1729
WJC-1000-350	1000	3.5	21.3	44.0	200	66.5	670	1021	5xΦ13	20	β=95°	γ=30°	2:1	7000	Y	N	31	1120
WJC-1000-400		4.0	24.4	50.0	228	76.0
WJC-1150-350	1150	3.5	24.5	51.0	200	66.5		1174
WJC-1150-400		4.0	28.0	57.0	228	76.0
WJC-1250-350	1250	3.5	26.7	55.0	200	66.5		1277
WJC-1250-400		4.0	30.5	63.0	228	76.0
WJC-1350-350	1350	3.5	28.8	59.0	200	66.5		1379
WJC-1350-400		4.0	32.9	66.0	228	76.0
WJC-1600-350	1600	3.5	34.1	68.0	200	66.5		1634
WJC-1600-400		4.0	39.0	78.0	228	76.0			7xΦ13

Klikk for å se bildet

Merknader:
1. Balanseforholdet for WJC-2500-200~250 og WJC-3000-H er 0,45~0,5.
2. Bremseplukking/holdespenningen er DC110V. Spenningsbryter er ikke nødvendig.
3. Med "★"-merket, driftssyklusen er S5-30%.
4.Regen drive-applikasjon, vennligst ta kontakt med oss, bestill deretter med notater.
